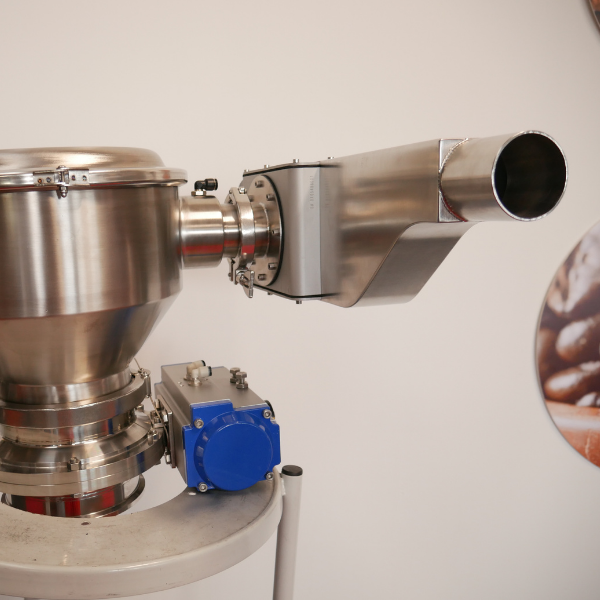

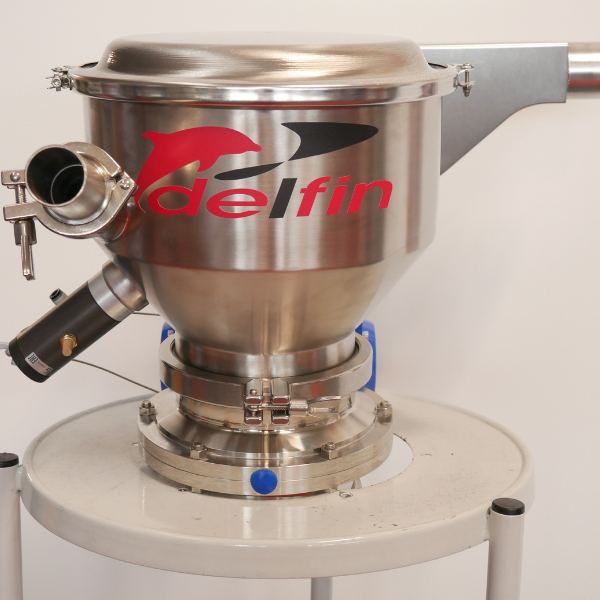

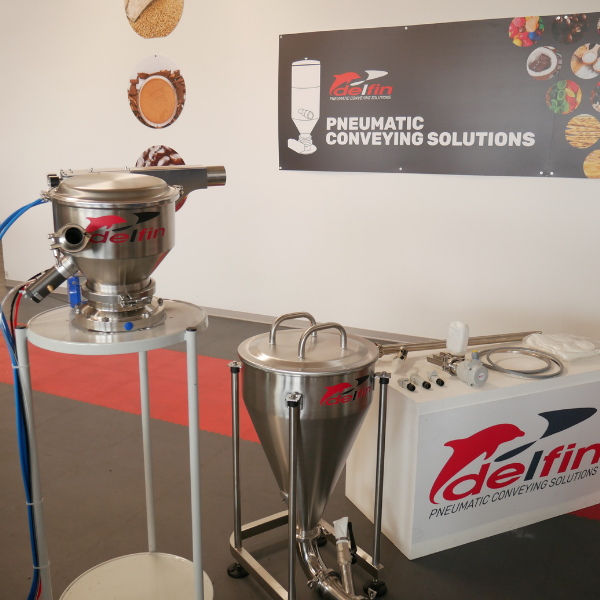

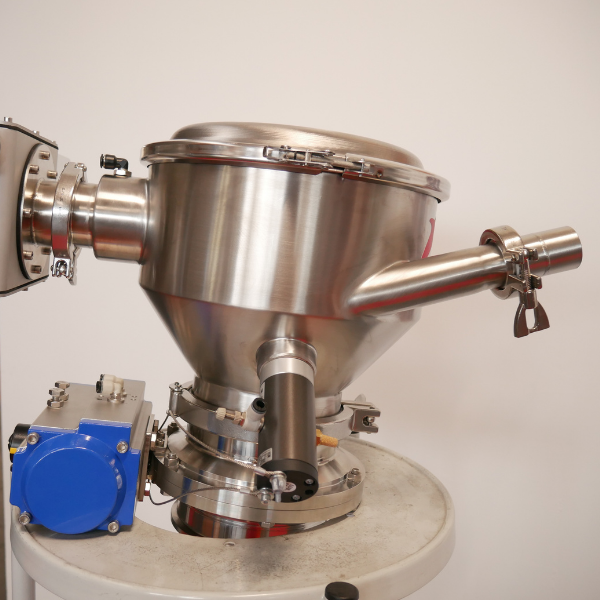

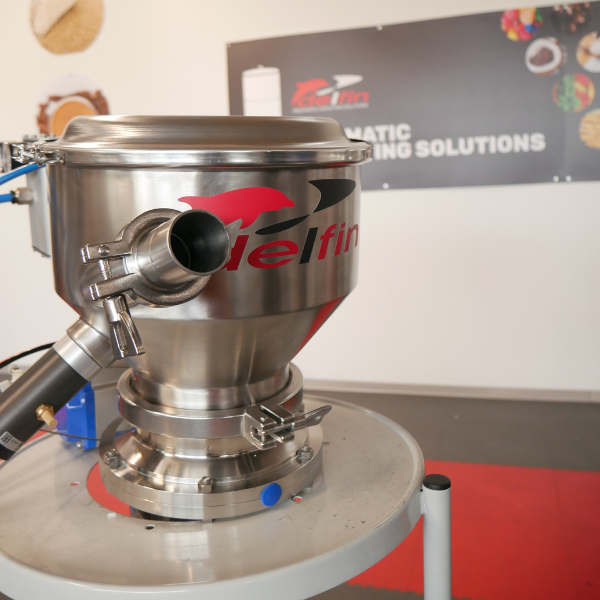

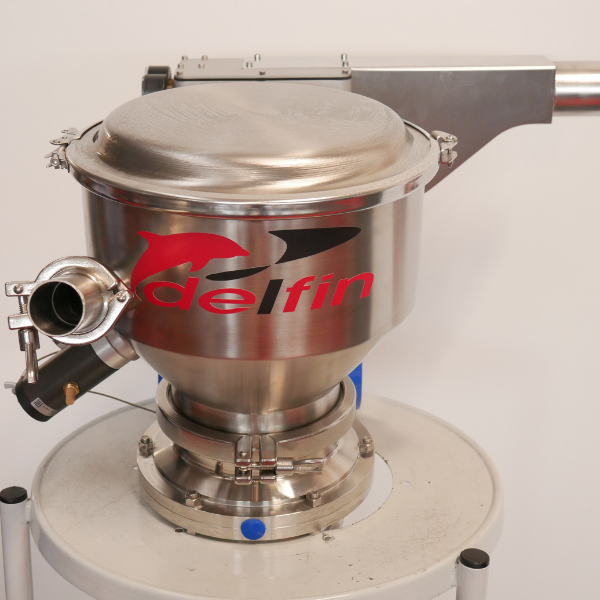

ChemicalDense phase pneumatic conveyor equipped with a multi-nozzle Venturi pump, CE and FDA certified system and ATEX Zone 22 or Zone 21 certifiable, recommended for heavy and continuous use.
Suitable for products that are not very smooth or tend to become compact, useful when the products must not be demixed and it is necessary to preserve them from breakage. Fully automatic functional logic, system designed for continuous operation or by external 24Vdc signal. Parts in contact with the product made of AISI 304 Stainless Steel, external satin finish and internal polishing.
OPTIONALS
FEATURES
High-efficiency suction unit made with a Venturi vacuum pump complete with an silencer made of AISI 304 stainless steel.
Food-grade anti-static polyester bag,
FDA certified, 1μm media.
Dynamic and automatic filter cleaning system.
• Single-body truncated conical loading unit with tangential product inlet, made of AISI 304 stainless steel, with internal polishing and external satin finish. Clamp for Ø25 product
conveying line or with reduction to Ø40.
Maximum load capacity 3,5l.
• Ø150mm butterfly valve discharge unit and actuator made of AISI 304 stainless steel.
Pneumatic command and control unit to be wall mounted; remote 3m from the loading unit, housing made of AISI 304 stainless steel.

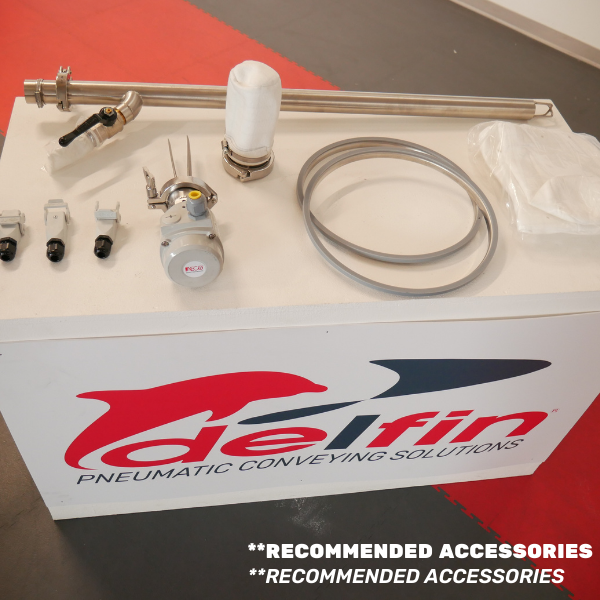

ACCESSORIES
The Delfin suction lance is a useful accessory for taking the product directly from bags, hoppers, bulk, tanks and containers. It is made of AISI 304 ...
Find out more
Delfin pneumatic conveyors has a wide range of product intake hoppers, made of AISI 304 stainless steel, with an external satin finish/internal ...
Find out more
Delfin has a wide range of storage bins or silos, from 30 to 1000 litres, made of stainless steel, suitable for the containment and transport of ...
